NJZ1286係列 150W室內型BUC功放電源 NJZ1286 series 150W PSU, Indoor type
更新：2023/6/30 4:50:47 點擊：
- 產品品牌 JRC
- 產品型號 NJZ1286
- 產品描述
NJZ1286係列 150W室內型BUC功放電源適用於VSAT(甚小口徑衛星通信終端)衛星通信地麵站對於互聯網連接以及數據和語音通信是不可或缺的設備...
產品介紹

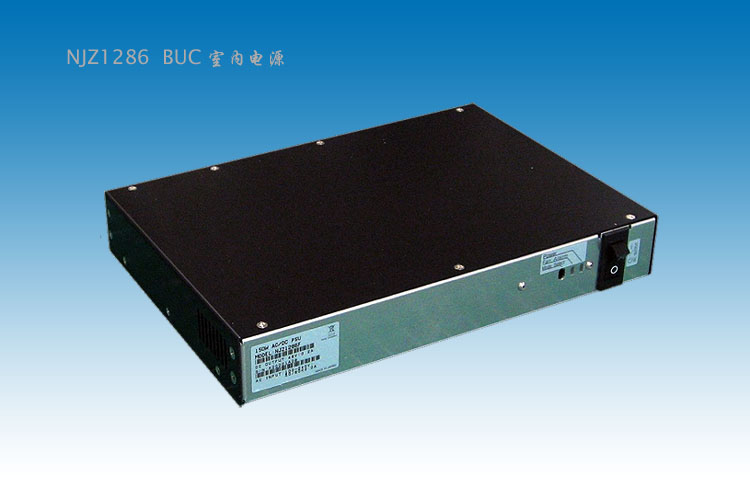

產品名稱：室內型BUC功放電源
產品型號：NJZ1286 150W
產品描述：NJZ1286係列 150W室內型BUC功放電源適用於VSAT(甚小口徑衛星通信終端)衛星通信地麵站對於互聯網連接以及數據和語音通信是不可或缺的設備

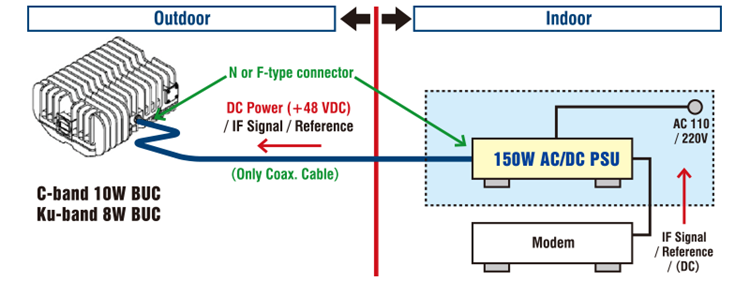

產品應用
產品選型：
| 型號 | 電源特性 | 中頻連接器規格 | 適用的BUC產品 |
| NJZ1286N | +48 VDC / 150 W max. | N型 (50Ω) | NJT5118係列 → |
| NJT5218係列 → | |||
| NJT5762係列 → | |||
| NJT5763係列 → | |||
| NJT5764係列 → | |||
| NJZ1286F | F型 (75Ω | NJT8318係列 → |
| Items | Parameters | ||
| Input AC Power Interface | IEC320-C14 Inlet | ||
| Output DC Power Interface | Coax. Connector, N-type Female (50 Ω) | ||
| Coax. Connector, F-type Female (75 Ω) | |||
| Input AC Power Voltage Range | Specified Value: 100 to 240 VAC | ||
| Maximum Rated Value: 90 to 264 VAC | |||
| Input AC Power Frequency | 50 / 60 Hz | ||
| Input AC Power Consumption | 200 VA | ||
| Output DC Power Voltage | +48 V ± 10% | ||
| Output DC Power Capacity | 150 W max. | ||
| Supported IF Frequency Range | 950 to 1,700 Hz | ||
| Operating Temperature Range | 0 to +50 ℃ | ||
| Weight | 1.6 kg | ||
| Dimensions | (L) 290 x (W) 200 x (H) 44 mm (w/o Interfaces & Screws) | ||
