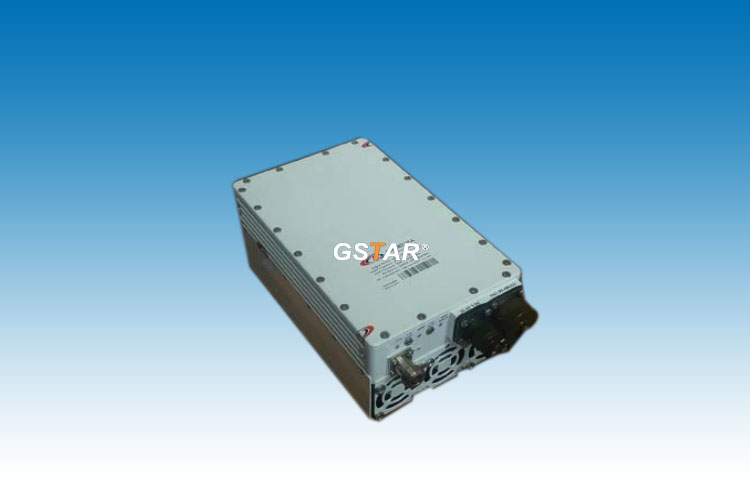

產品名稱： Ka波段功率放大器 Ka Band BUC

產品型號： ABC20UKA / ABC20UKAF

產品概述：

This unique fi rst ever 20W L-To Full Ka-BandBlock Up Converter covers the O3B (27.65-29.1GHz), Commercial 商用(29.0-30.0 GHz) and Military軍用(30.0-31.0 GHz) frequency bands. M&C (FSK)capability enables trouble shooting, monitoring
and controlling the BUC. Unit provides 10MHzreference autosensing feature.
產品特點：

 Output frequency 27.5-31.0 GHz
 Based on GaN technology which enables higheffi ciency, low power consumption and high reliability.
 Quad- L.O. (electronicaly and manually switchable26.55, 27.4, 28.05, and 29.05 GHz)
 Low power consumption (260W max)
 Advanced M&C interface - combined RS-232/485,Ethernet (HTTP and SNMP ver. 3) and optional FSK
 L.O. lock, amplifi er and 10MHz LEDs
 Field-exchangeable (F/N) IF connector
 Internal 10MHz high stability reference autosensingand controlable (optional)
 Built-in redundancy option
 RoHS compliant

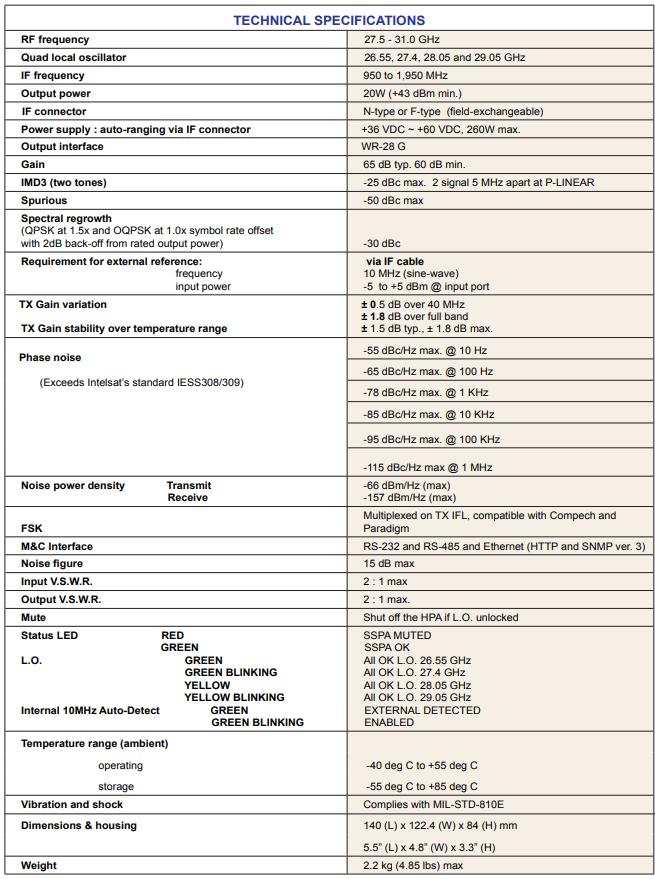

技術數據：
